Features

● Automatic door and pedal switch

-  Transparent visible glass door helps real time monitoring disinfection procedure.

-  Pedal switch allows you to handle AER cover while operators hands are occupied.

● Disinfectant management

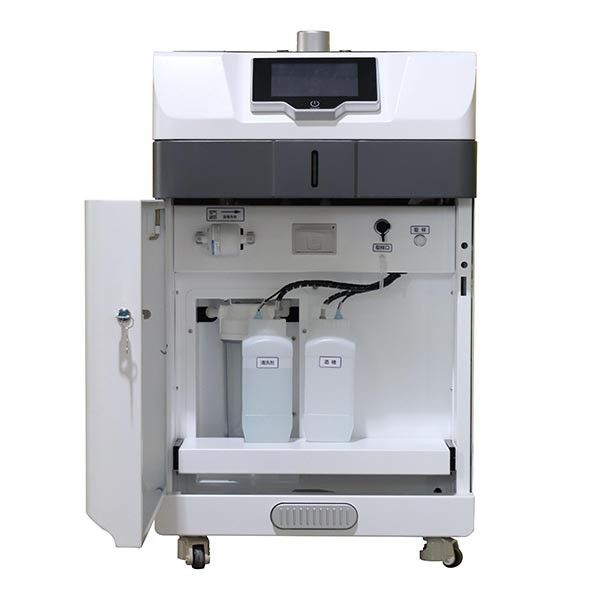

 - Automatically recording the usage times of disinfectant and prompt the disinfectant expiration. Automatically sampling disinfectant facilitates testing disinfectant sampling. Operator does not need to sample disinfectant manually.

- Automatically add and drain disinfectant.

● Control, traceability and communication

- Microcomputer control. Multiple programs meet various reprocessing requirements.

- Intuitive 7-inch control touch panel eases machine operation.

- Built-in printer print disinfection details of every disinfection process, facilitating documents archiving.

- Ethernet port for the endoscope tracing system to connect to.

● All channels and surface thorough disinfection

- Spray arms at the bottom and top of basin help ensure the exterior surface of scope, basin and lid interior surface are disinfected and cleaned.

- Booster pump supplys effective flow pressure to flush scope channels, preventing formation of biofilm.

- 0.2 micron filter to filter final rinsing water, avoids contamination caused by rinsing water.

● Self-disinfection avoids cross infection.

- All channels and lumens are disinfected which is contacted by solutions and water during cleaning, disinfection and rinsing processes.

● Water and energy saving

- Adopt center-raised design, saving energy, water and disinfectant consumption in every procedure.

● Leak test over whole process

- Processor finishes leak test before scope contact with any liquid of reprocessor, like detergent, disinfectant or water. If leakage is detected, washing and disinfection process will be stopped, audio and visual alarm be emitted simultaneously.

Specifications

Details

Flexible endoscope reprocessor front-top view

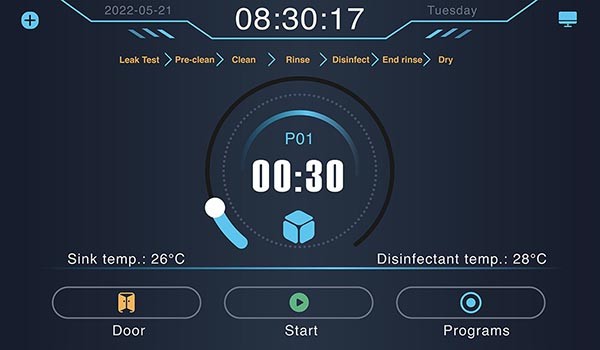

Control panel
