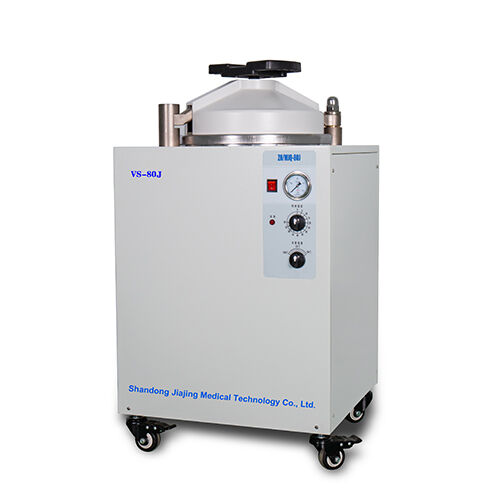

VS Ranges Vertical Autoclave
VS-J range autoclave displaces the chamber air by natural property of steam and air. Air is pushed out of chamber by steam through bottom drain vent. It is economic and has wide usage in biological laboratories to sterilize fabrics, instruments, rubber, liquids, glassware, culture media, waste etc.
Download PDF >
General Details
Specification
ModelChamber DimensionAvailable VolumePowerMachine DimensionWeight
VS-50Φ316×667 mm51L3 kW476×616×990 mm65 kg
VS-80Φ386×700 mm80L4.5 kW546×688×1030 mm75 kg
VS-100Φ386×860 mm100L5.4 kW546×688×1195 mm85 kg
Power supply for:VS-50: 220-240V, 50/60Hz.VS-80 and VS-100: 380 - 400V, 50/60Hz.


Features


Models
FeaturesVS-JVS-CVS-EVS-B
Microprocessor Controlllll
Automaticllll
Sterilization Temperature105-134°C105-134°C105-134°C105-134°C
Sterilization Time0-60min0-60min0-60min0-60min

Over-heating Protectionllll
Door interlockllll
Pressure Safety Valvellll

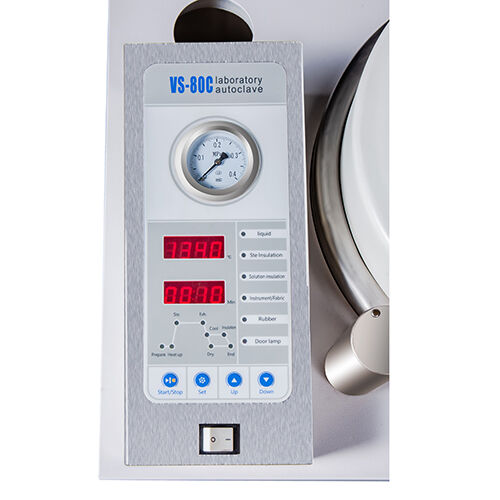

Control SystemKnobMembrane buttonTouchscreenTouchscreen
Status Display-Digital tubeTouchscreenTouchscreen
Biosafety Settings *l---
Air DisplacementGravity air displacementSteam-flush pressure-pulse (SFPP)*Steam-flush pressure-pulse (SFPP)*Steam-flush pressure-pulse (SFPP)*
Preset Programs * lll
Liquid Loads Sterilization* Slow exhaustll
Built-in Printer* lll
Culture Media Sterilization & Temperature Preservation lll
Melting Temperature 40-100°C40-100°C40-100°C
Preserved Temperature 40-60°C40-60°C40-60°C
Design Pressure0.3MPa0.3MPa0.3MPa0.3MPa
Design Temperature150°C150°C150°C150°C
Max Working Pressure0.23MPa0.23MPa0.23MPa0.23MPa
Max Working Temperature136°C136°C136°C136°C

● Biosafety settings. Exhaust steam is cooled by cool air and water, so no aerosol produced. And exhaust steam is also filtered by HEPA, which will effectively reduce environment pollution.

● Liquid program pressurizing system. Sealed bag or bottle may burst when chamber cooled, causing damge to autoclave and danger to operator To prevent bottle and bag burst during cooling, controlled pressure is exerted to chamber. Then pressure between inside and outside is equalized, effectively avoid sealed container burst.

● Built-in Printer: optional.

● Preset Programs. sterilization programs for fabrics, instruments, rubber, sealed liquid (glass, plastic bottle and soft bag) and waste. Also programs for temperature sterilization, preservation and melting are preset.

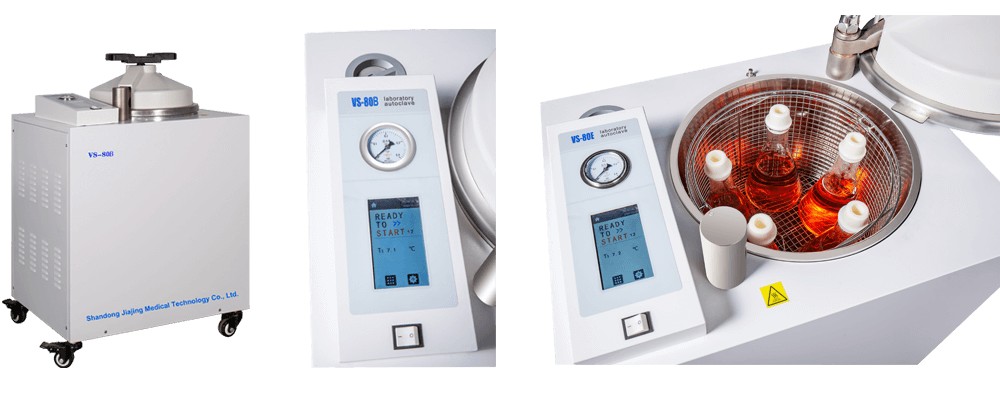

Autoclaves Appearance
