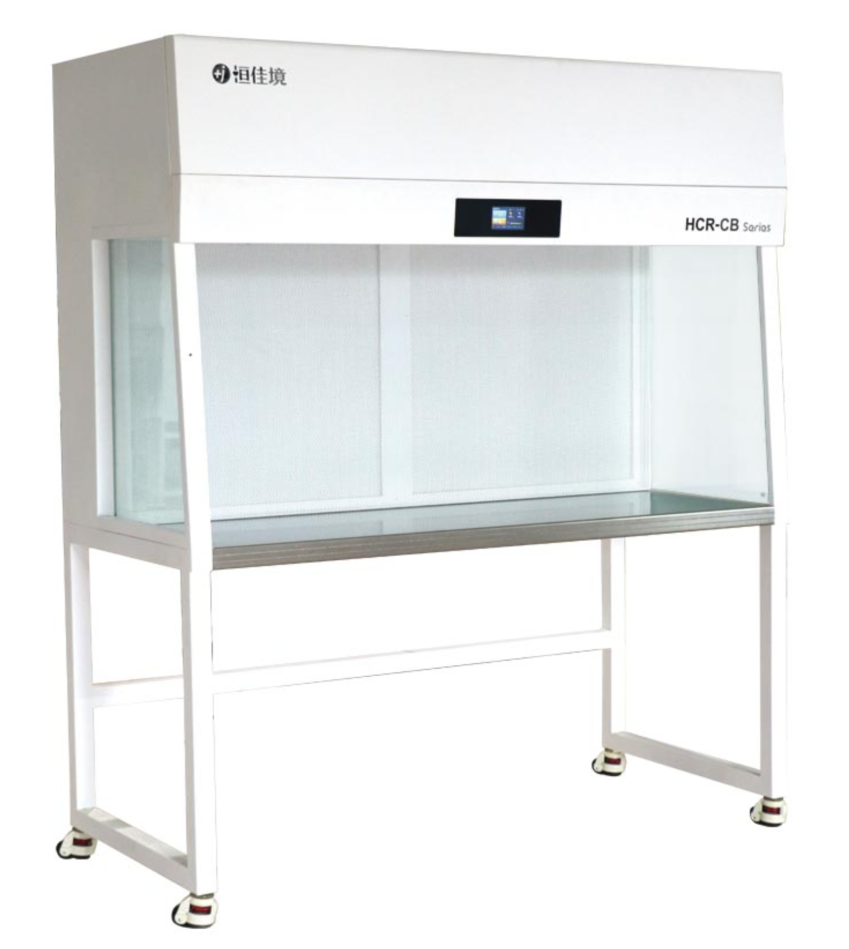

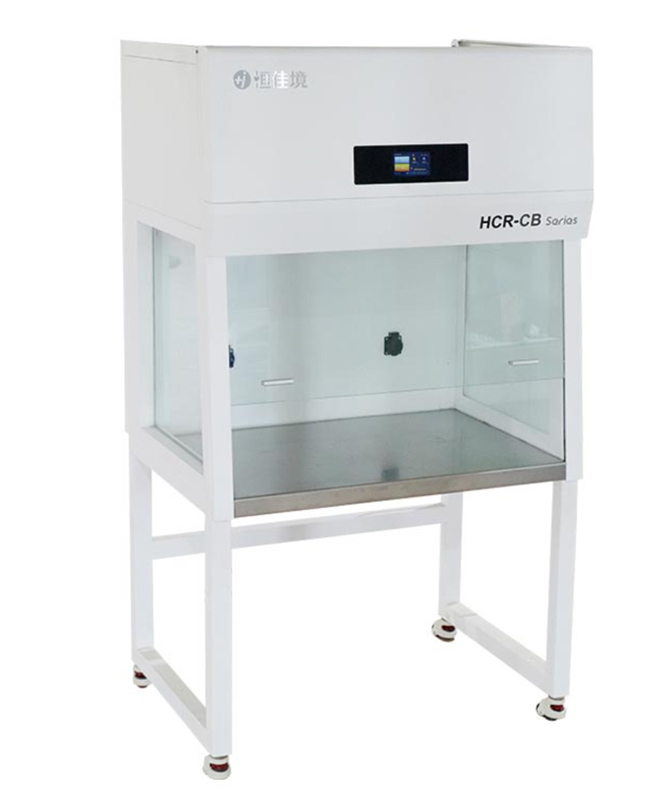

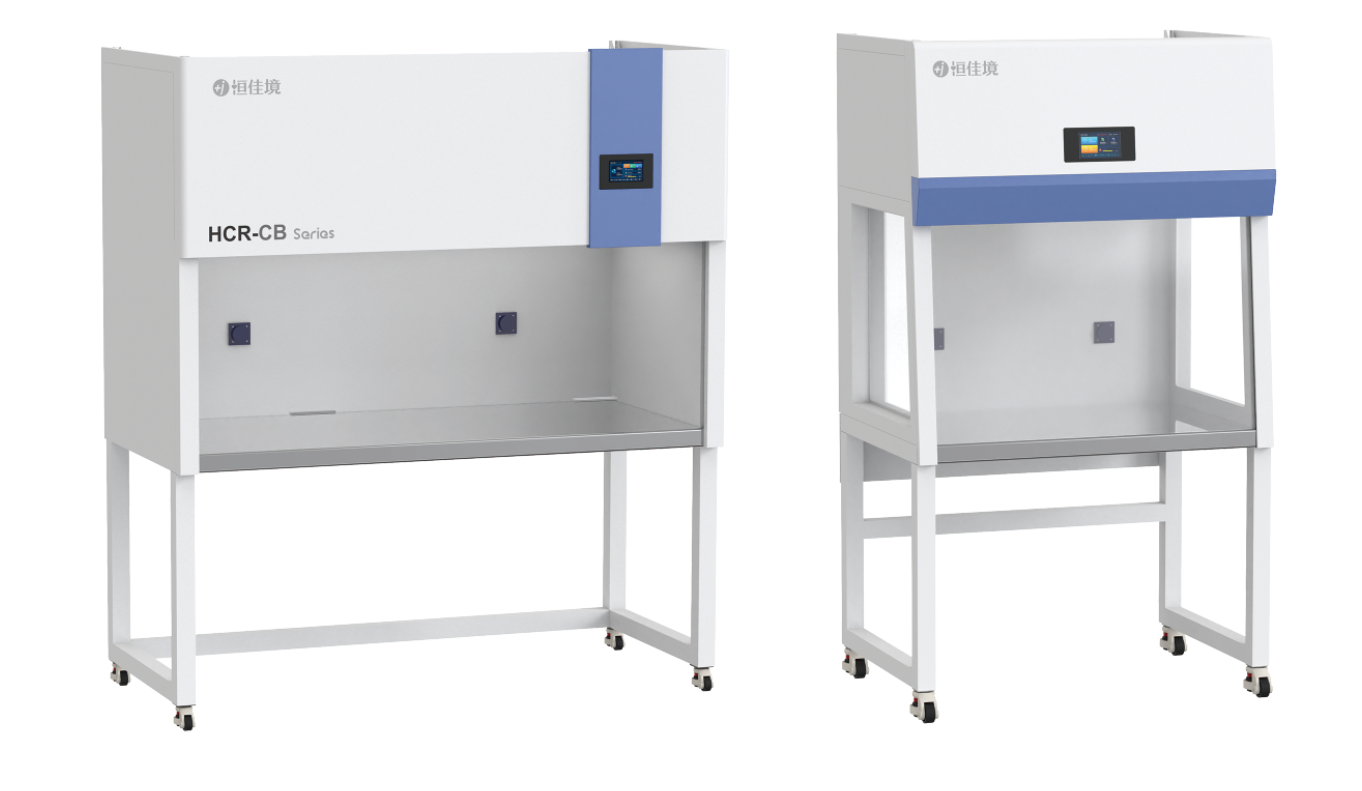

Vertical / Horizontal Airflow Clean Bench Specifications

Features

Medical touchscreen and Intelligent control.

• 4.3" high resolution touchscreen (800×480)

• Real-time monitoring of temperature, humidity, filter life and alarms.

Maintenance-free counter-balance sash.

Counter-balanced sash avoids risks from flat spring fatigue and cracks, and problems of uneven pulling force and being prone to displacement.

Isolated downward air filter from the plenum avoids contamination from the joint between the filter and air outlet.

There is possibility that the joint between the filter and the air outlet may not be airtight, which will lead to non-filtered air bypassing the filter and contaminate the workspace. We separate the supply filter from inside the plenum, totally avoiding the possibility of air bypassing filter.

Ergonomic design.

• 5 degree inclined sash will not obstruct your body

• Transparent glass on both sides provides with better experience.

• A smaller external size while maintaining the same workspace, resulting in less space occupation.

 Timed machine and UVC lamps on/off

Machine and UVC lamps on/off can be scheduled to switch on/off. Operator can schedule the machine on/off and UVC disinfection as required, saving operator time.

UVC lamps interlock to protect operators

UVC lamps interlock with lighting to avoid neglecting UVC lamps running, resulting to accidental harm to human being.

Filter life alarm

Audible and visible alarm to prompt replacing HEPA filter.

Built-in filter integrity test port

Test port for testing the integrity of filter including filter defect, filtration efficiency and leakage.

Rigorous Factory Testing

Filter integrity, air cleanliness, airflow velocity, noise and electrical safety will be tested on every machine before leaving factory.
