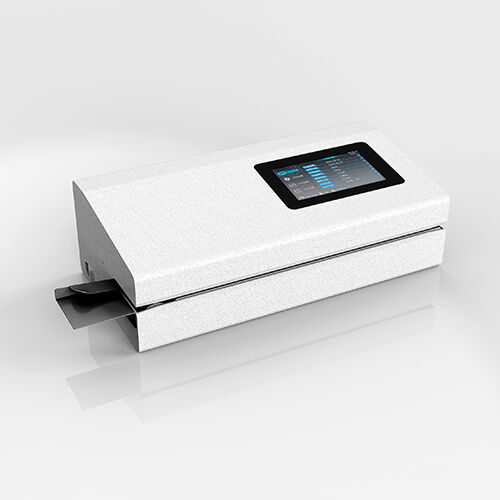

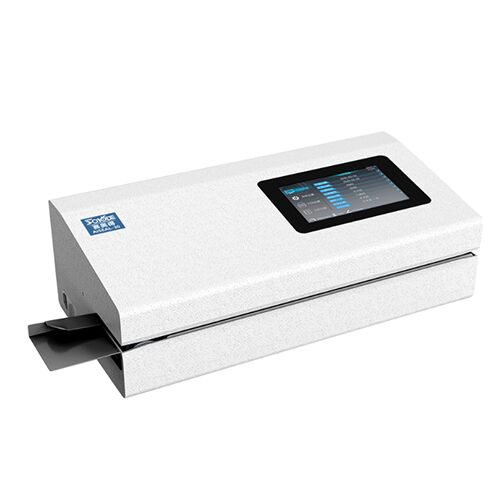

HCRseal-30 Medical Sealing Machine With Printer

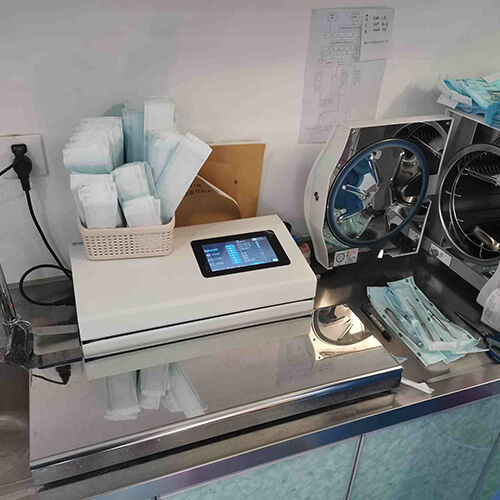

HCRseal sealing machines consist of feeding part, heat sealing parts (intellectually controlled), pop-up type printing module, controlling system and touch display. Machines can be used in Hospital central sterile supply department (CSSD), operating room, dentistry department, beauty institutions to seal medical apparatus and items before sterilization, where paper-plastic, plastic and Tyvek pouches are applicable.
Download PDF >
General Details
Specification

Features

● Durable carbon steel housing

● 7" color touch screen facilitate printing and setting

● Temperature control with microprocessor

● Buit-in dot matrix printer

● Temperature tolerance ±%1

● Automatic in-feed with optic sensor

● Adjustable temperature up to 220°C

● 10m/min sealing speed

● Adjustable seal distance from edge

● Automatic standby mode

● Conform to ISO 11607, EN 868-5

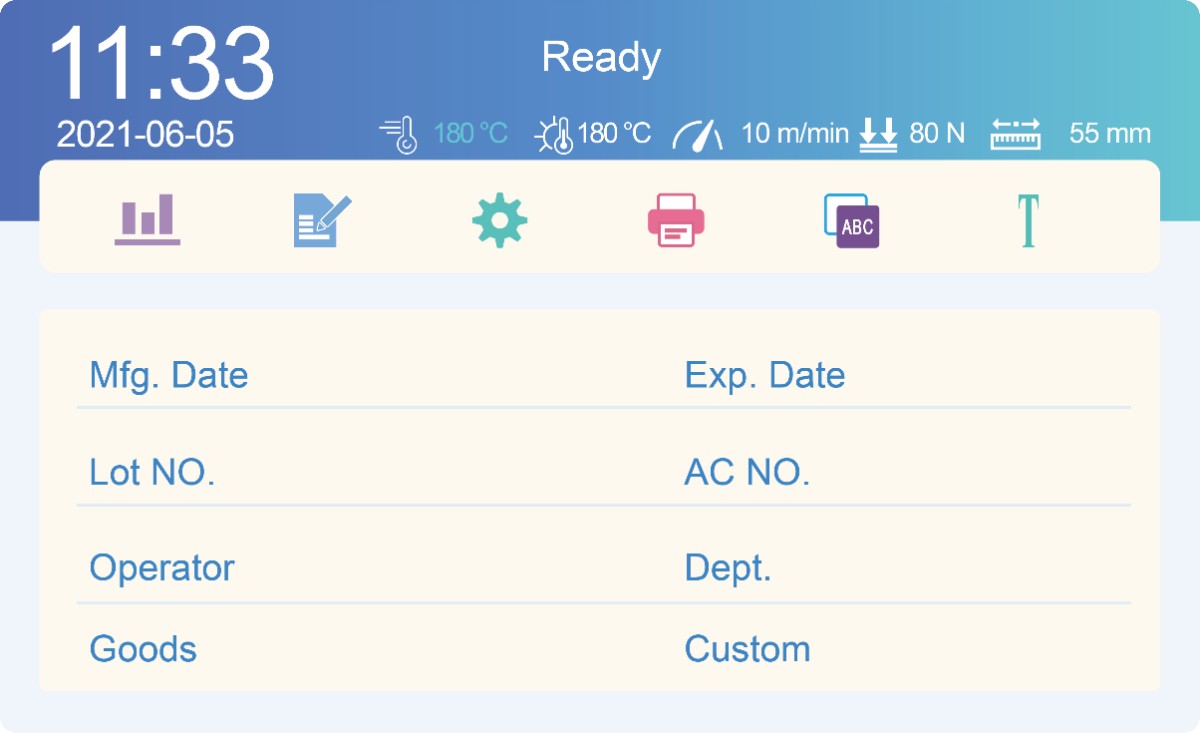

Intuitive Control Panel

25Medical Sealing Machine With Printer.png


Built-in Printer Performance




HCRseal-30
Automatic & continuous
450×230×175 mm
11kg
400W
Coated carbon steel
Max. 220°C
180°C/40s
12 mm
≥10m/min
0~40 mm
7" color touch screen
Built-in OS
Dot-matrix printing (single line)
/

Quick Start Guide
