Disinfection Module:

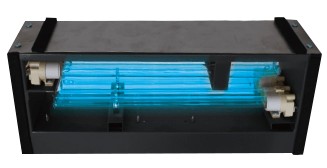

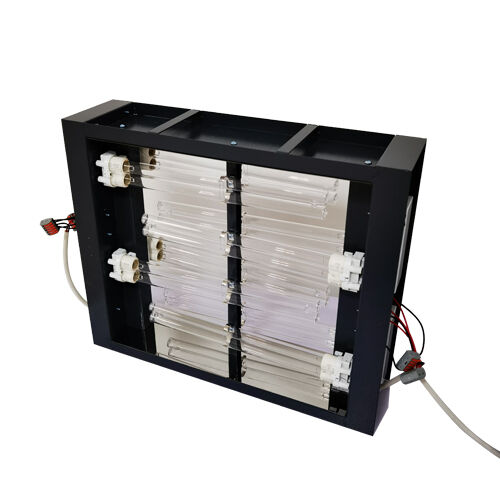

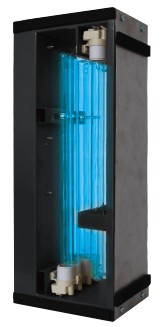

Core disinfection part—UVC disinfecting module

This module mainly consists of UV lamp and balst. High intensity (20,000μm/cm²) UVC ray is able to penetrate microbes cell and destroy the protein and nucleus structure to deactivate or kill microbes.

Disinfection Efficacy：

● Machines can be used to achieve Class II or III environment (GB 15982-2012)* in hospitals and other facilities.

● Deactivation rate for natural microorganisms is >90% after running machine for 60 min continuously；

● Deactivation rate for Staphylococcus albus in aerosol chamber is >99.90% after running machine for 30 min continuously;

● Deactivation for Human Coronavirus (HCoV-229E) and H1N1 virus is >99.99%

* Environment Classifications:

Class I: Top-level operating room and other highly hygienic areas like clean room for bone marrow transplantation.

Class II: Common operating room, common patient ward for bone marrow transplantation, delivery ward, catheter room, infant room, organ transplantation ward, burn ward, ICU, hematology ward.

Class III: Pediatric ward, rooming-in, obstetrics-gynecology examination room, abortion room, treatment room, blood transfusion department, disinfection supply center, hemodialysis room, emergency room, laboratory, various general wards

Class IV: General outpatient and emergency department and examination room (injection room, dressing room), infectious disease clinic and ward

Applied to

Operation room, ICU, supply center, delivery room, laboratory, protective isolated ward and place where people prone to infection.

Features

● People can work around when machine is running, no harm caused

● Intuitive 5" color display panel

● TVOC and PM2.5 sensor monitors indoor air quality

● Optional formaldehyde, CO2 sensors and IoT

● High intensity (>10,000 μW/cm²) 254 mm UVC lamps deactivate microbes.

● HEPA 13 remove 99.95% 0.3 μm particles

● Machine housing uses galvanized steel plate, stable and anti-ignition.

● Use doped quartz UV disinfection module, excellent performance and durable.

● Carbon removes TVOC and odors.

● Photocatalyst can remove off formaldehyde, benzene and TVOC effectively.

● Manual, timing and reservation mode can meet customers more demand.

● Remote control with magnet can stick to machine cover; easy to find.

● Three wind levels are available.

● Accumulated working time can be displayed

● Filter replacement or cleaning prompt.

● 6 time periods can be reserved with regard to starting time, duration, fan speed etc.

● Negative ions helps agglomerate particles and fresh air.

● Modular design, easy for maintenance.

● Failure alarm with fan, UV lamps.
