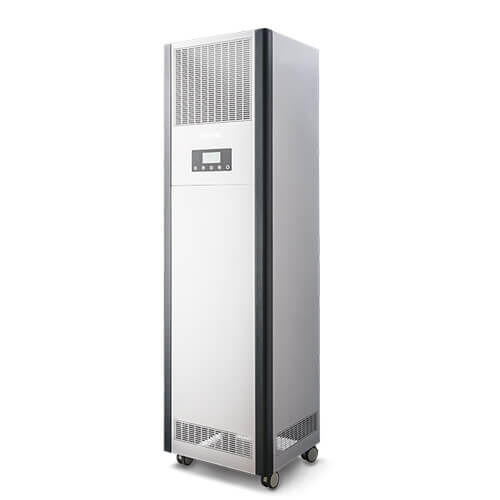

UVC Mobile Disinfector
● Pre-filter filters larger particles to lengthen HEPA life. ● 72-144W UVC lamps effectively deactivate airborne microbes ● HEPA filter removes >99.95% of particles >0.3 micron. ● Activated carbon absorb odors and volatile chemicals
Download PDF >
General Details
Specification

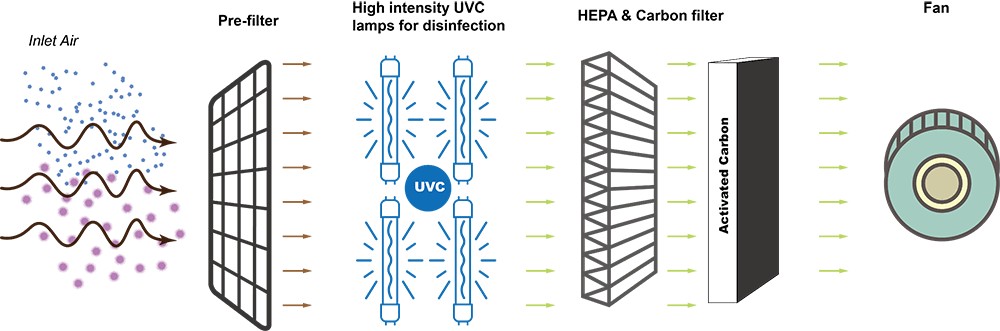

Working Principle



● Pre-filter filters larger particles to lengthen HEPA life.

● 72-144W UVC lamps effectively deactivate airborne microbes

● HEPA filter removes >99.95% of particles >0.3 micron.

● Activated carbon absorb odors and volatile chemicals


Centrifugal fan

High wind pressure provided by backward centrifugal fan guarantees air flow passing through the HEPA

Air flow: 600-1500 m3/h

Centrifugal fan.png

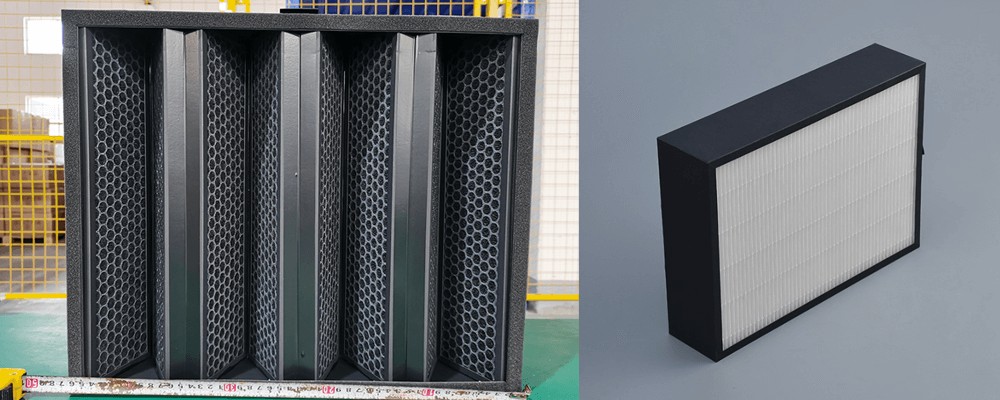

HEPA & Activated Carbon



Sensors

Multiple air quality sensors for monitoring air quality: PM2.5, TVOC, CO2, HCHO, temperature, humidity



Control

● Intuitive LCD display panel

● Remote controller

● Mobile phone APP control

● Internet of things




Test Report




ModelKXZ-B-600KXZ-B-1000KXZ-Y-600KXZ-Y-1000KXZ-Y-1300KXZ-Y-1500
InstallationWall-mountingKXZ-B-1000MovableMovableMovableMovable
Dimension (mm³)900*380*1601005*380*160280*390*660325*420*825325*420*825520*450*1800
Net weight (kg)172018242461
Air flow (m3/h)6001000600100013001500
Noise (dB(A))555555555555
Power (W)155250167178230295
HEPA dimension (mm)--337*278*70380*280*90380*280*90466*386*100
Ultraviolet lamps36W*424W*824W*324W*424W*424W*8
Packing size (mm)970*450*2301075*450*230360*460*740500*405*895500*405*8951867*525*590
Gross weight (kg)202323303070
