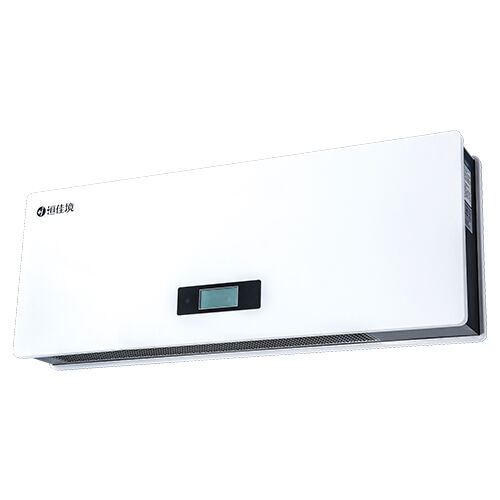

Plasma Wall-Mounted Air Disinfector
There are three commonly encountered states of matter: solid, liquid, and gas. When a solid is heated, it transforms into a liquid and then from a liquid into a gas. If enough energy is applied to gas, it becomes an ionized gas known as plasma, which represents the fourth fundamental state of matter.
E-mail >
Download PDF >
General Details
Specification

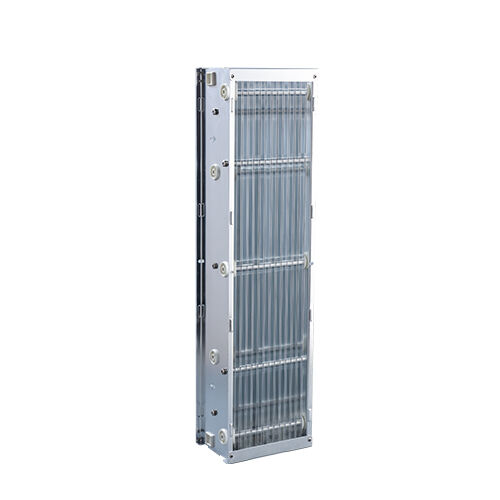

Working Principle





There are three commonly encountered states of matter: solid, liquid, and gas. When a solid is heated, it transforms into a liquid and then from a liquid into a gas. If enough energy is applied to gas, it becomes an ionized gas known as plasma, which represents the fourth fundamental state of matter.

The plasma contains reactive chemical species such as electrons, ions, neutral molecules, and atoms, as well as charged species. Plasmas reduce concentrations of pathogens upon contact with contaminated air. Plasma destroys bacteria, viruses, fungi and prions; it also removes toxins and further organic contaminants.

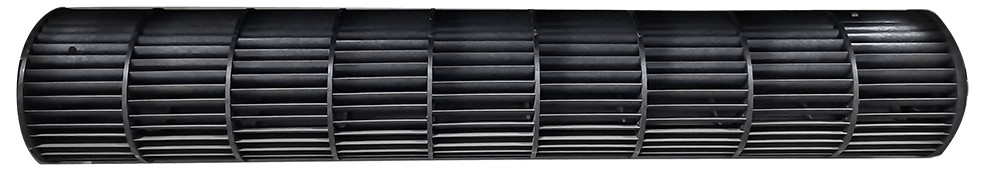

Tangential fan

Tangential fan provide air flow range 600-1000 m3/h

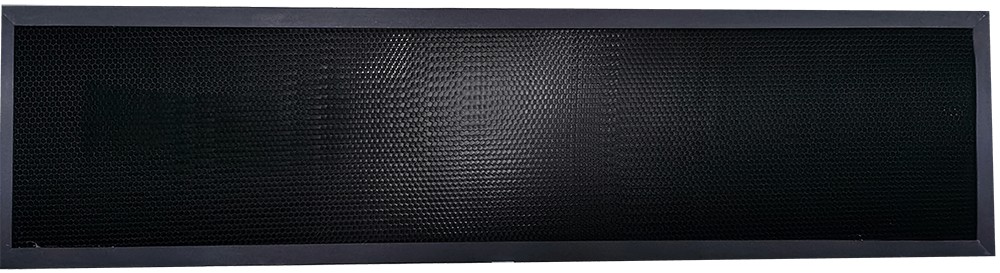

Coated Activated Carbon


Sensors

Multiple air quality sensors for monitoring air quality: PM2.5, TVOC, CO2, HCHO, temperature, humidity



Control

● Intuitive LCD display panel

● Remote controller

● Mobile phone APP control

● Internet of things

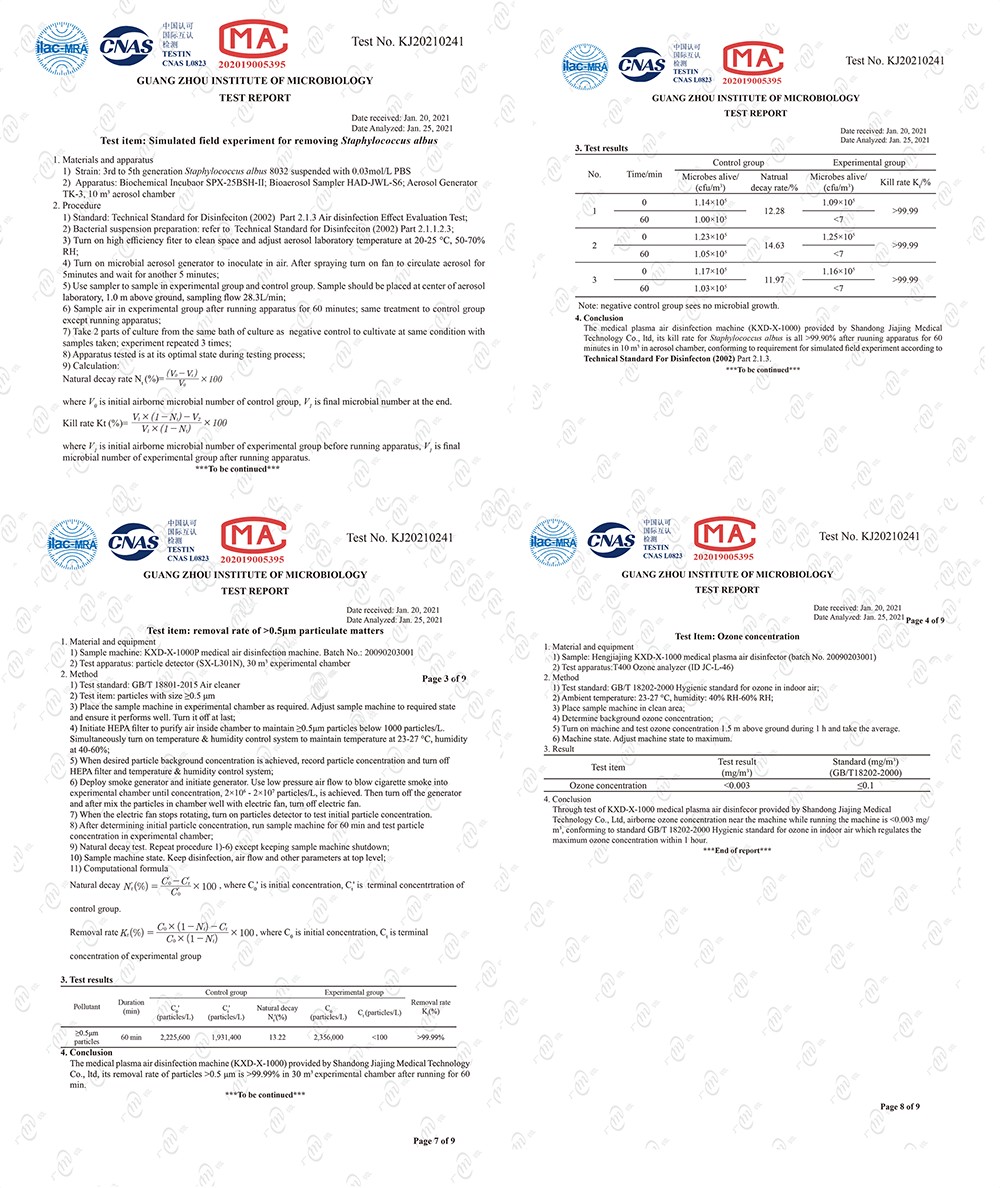

Test Report



ModelKXD-B-600KXD-B-1000KXD-X-600KXD-X-1000KXD-X-1500KXD-Y-600KXD-Y-1000KXD-Y-1300KXD-Y-1500
InstallationWallWallCeilingCeilingCeilingMoveableMoveableMoveableMoveable
Dimension (mm³)900×380×1601005×380×160620×620×353680×680×440680×680×440280×390×660325×420×825325×420×825520×450×1800
Weight (kg)182020262820252565
Delivery Rate (m³/h )600100060010001500600100013001500
Applicable space/m³601006010015060100130150
Noise/dB (A)555555555555555555
Rated Power/W556088115150103110140150
* Negative Ions/m³≥6×106≥6×106≥6×106≥6×106≥6×106≥6×106≥6×106≥6×106≥6×106
Running time/min≥60≥60≥60≥60≥60≥60≥60≥60≥60
Killing rate of field experiment>90%>90%>90%>90%>90%>90%>90%>90%>90%
Killing rate of  Staphylococcus albus>99.99%
Particle removal    (≥0.5μm)99.99%
Plasma field intensity/V8000

Quick Start Guide

Quick Start Guide of Generic Products
