Name: MST Ranges N and B Class Horizontal Autoclave
SKU: 0

Products

Home > Products > Autoclave > Horizontal Autoclaves 45-300L > MST Ranges N and B Class Horizontal Autoclave

MST Ranges N and B Class Horizontal Autoclave

MST-B ranges vertical pulse vacuum steam sterilizer are fully automatic autoclaves with built-in vacuum pump. Compared with class N autoclave, Pre-vacuum forcibly remove air in the chamber and load, facilitating heat penetration to the load. Class B autoclaves are preferable for more difficult loads that contain porous or hollow materials.

E-mail >

Download PDF >

General Details

Specification

Model	Chamber Dimension (Φ×L)/mm	Chamber Volume/L	Power/kW	Machine Dimension/mm	Weight/kg
MST-45B	316×590	45	3.6	850×600×520	65
MST-60B	380×500	60	5.7	985×600×1450	105
MST-80B	380×700	80	5.7	985×600×1450	120
MST-135B	500×700	135	9.35	1000×710×1700	200
MST-185B	500×950	185	10.8	1250×850×1700	230
MST-300B	630×1000	300	12	1350×950×1750	350
Power supply for:MST-45B: 220-240V, 50/60Hz.MST-60B, MST-80B, MST-135B, MST-185B, MST-300B: 380 - 400V, 50/60Hz.N Type autoclaves are also available and the models are:MST-45N, MST-60N, MST-80N, MST-135N, MST-185N, MST-300N

Features

	Models
Features	MST-45B	MST-60B	MST-80B	MST-135B	MST-185B	MST-300B
Microprocessor Control	l	l	l	l	l	l
Automatic	l	l	l	l	l	l
Built-in Steam Generator	l	l	l	l	l	l
Vacuum Dry	l	l	l	l	l	l
Inlet Air Filter	l	l	l	l	l	l
Over-heating Protection	l	l	l	l	l	l
Lower Water Level Prompt	l	l	l	l	l	l
Sterilization Temperature	105-136°C
Design Pressure	-0.1/0.3 MPa
Rated Working Pressure	0.23 MPa
Chamber material	SUS304
Temperature Uniformity	≤±0.5°C
Max. Vacuum	-0.96MPa
Temperature Display Precision	0.1°C
Air Displacement	Pulse vacuum (pule times can be set as needed)
Door interlock	l	l	l	l	l	l
Pressure Safety Valve	l	l	l	l	l	l
Control System	Touchscreen	Touchscreen	Touchscreen	Touchscreen	Touchscreen	Touchscreen
Preset Programs	l	l	l	l	l	l
B-D Test	l	l	l	l	l	l
Vacuum Test	l	l	l	l	l	l
Built-in Printer*	l	l	l	l	l	l
Available Loads	Hollowware, dressing

● Vacuum dry. Post vacuum dry system reduce fabrics moisture to 1%, and that of instrument to 0.1%.

● Automatic: Microprocessor controlled fully automatic sterilization process —pulse vacuum, heating, sterilization, exhaust, vacuum dry

● Inlet air filter. 0.22 μm filter removes 99.97% of microbes when breaking vacuum, which only allows sterile air to enter into chamber.

● Built-in Printer: optional.

● Preset Programs. Programs for sterilization of solid instrument, dressing, hollow instrument, liquid, rubber and custom program. Test programs like BD air removal test, vacuum test are also available.

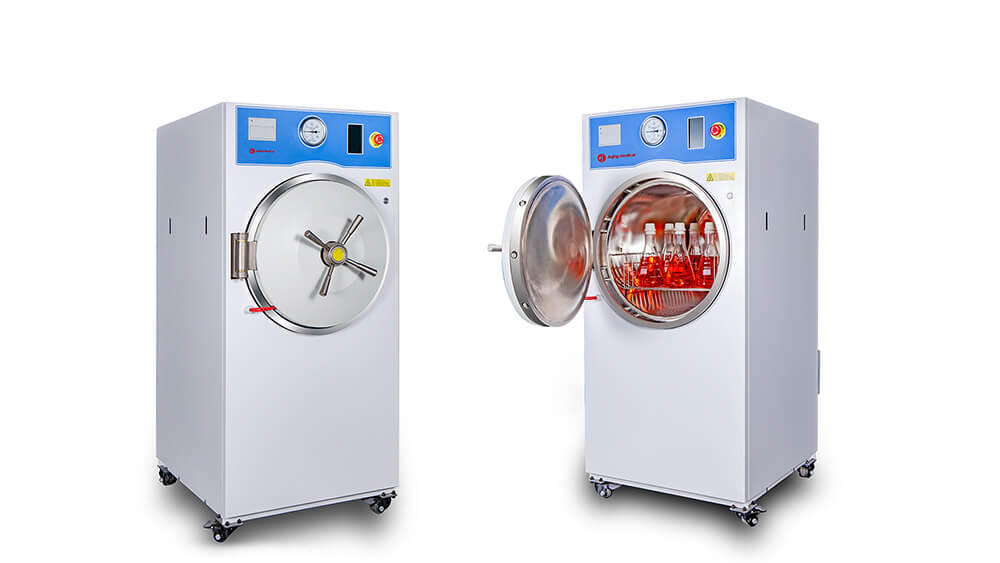

Autoclaves Appearance

Quick Start Guide

MST B&N Class Autoclave Brochure
